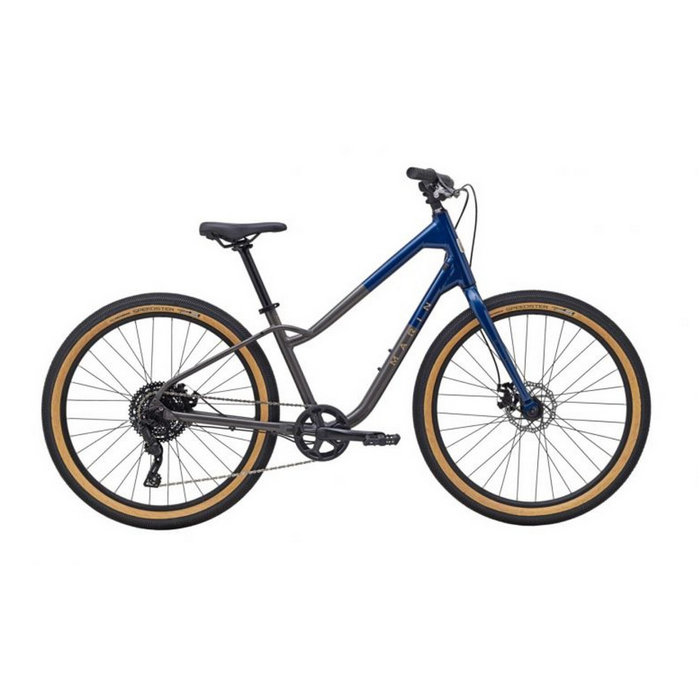

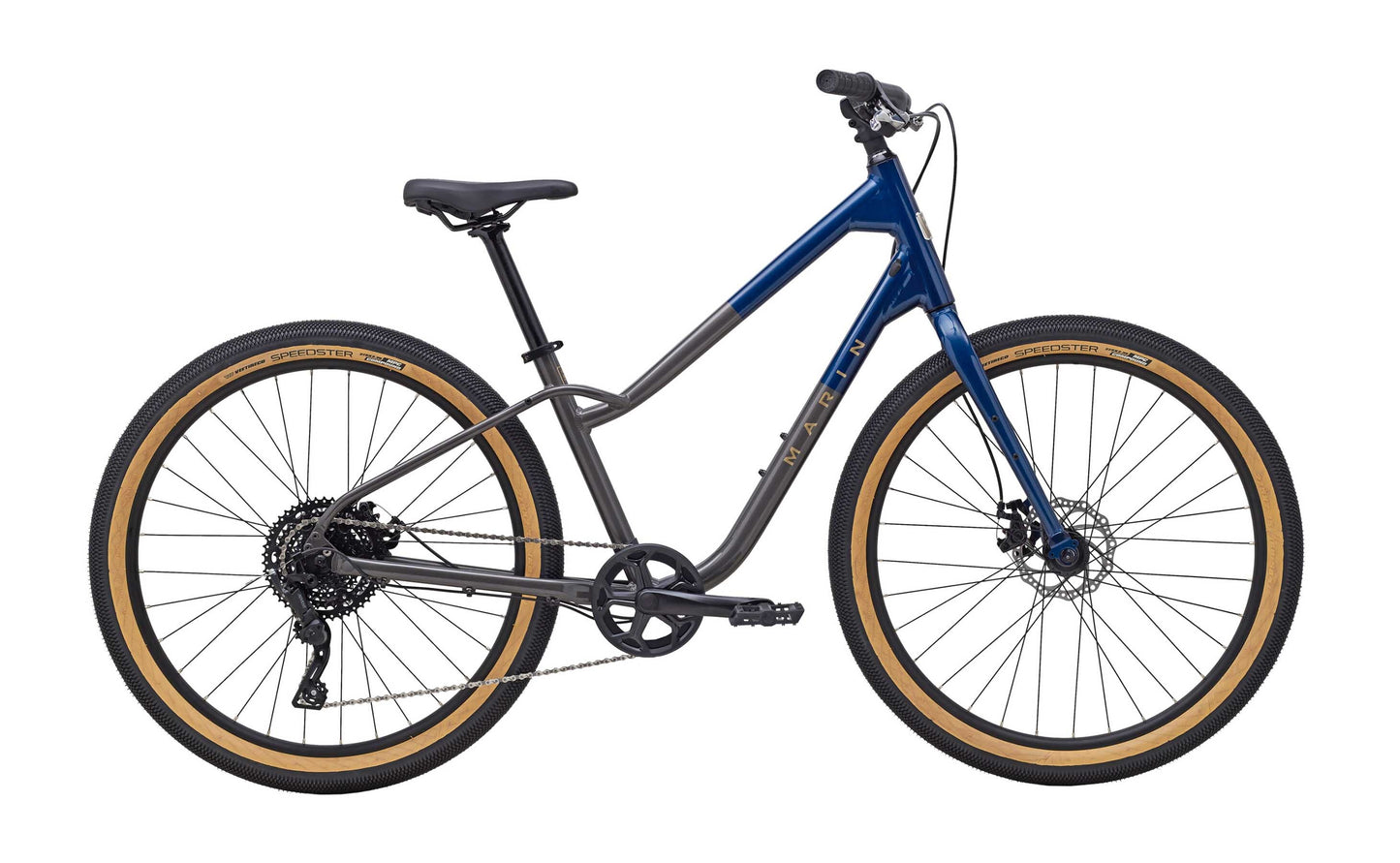

Stinson 2

The Stinson is an updated take on the classic cruiser design for casual and comfortable path riding. Comfort Control Geometry allows riders to touch the ground with their foot for confident and safe riding and stopping.

Specifications

• Frame

  Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

• Fork

  CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

• Rims

  Marin Aluminum Double Wall, Disc Specific

• Hub, Rear

  Forged Aluminum Alloy, 32H

• Hub, Front

  Forged Aluminum Alloy, 32H

• Spoke, Nipples

  14g Stainless Steel

• Tires

  Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

• Derailleur, Rear

  microSHIFT Advent 9-Speed Wide Range

• Derailleur, Front

  -

• Shift Lever

  microSHIFT Advent 9-Speed

• Crankset

  Alloy Crank, Steel 38T Chainring, Ring Guard

• Bottom Bracket

  Sealed Cartridge Bearings, Square Taper

• Chain

  KMC X9

• Cassette

  microSHIFT 9-Speed 11-46T

• Brake, Front

  Tektro MDM280 Mechanical Disc, 160mm Rotor

• Brake, Rear

  Tektro MDM280 Mechanical Disc, 160mm Rotor

• Brake Levers

  Shimano w/ Integrated Shifters

• Handlebar

  Marin Alloy, 60mm Rise, 30˚ Backsweep

• Stem

  Marin Alloy, 31.8mm Clamp

• Grips

  Marin County

• Headset

  FSA, TH No.10P

• Seatpost

  Marin Alloy, 27.2mm

• Saddle

  Marin Comfort

• Pedals

  Marin Oso OEM Nylon Platform
