Nicasio

ADVENTURE ROAD AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

ENDURANCE AND ALL-WEATHER PAVEMENT

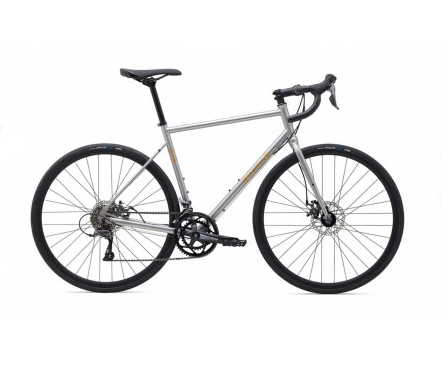

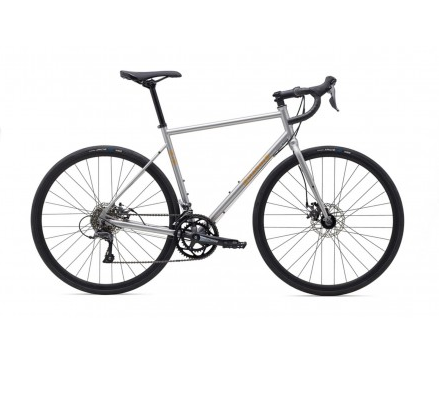

The most affordable model in the family, the base-spec Marin Nicasio is built around a smooth-riding and stylish Series 1 double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 35mm tires. We’ve specced a 2x8-speed Shimano Claris drivetrain, Vee Tire rubber, powerful mechanical discs and plenty of Marin components.

SPECIFICATIONS

• FRAME

  Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount

• FORK

  CrMo, Fender and Rack Eyelets, IS Disc Mount

• RIMS

  Marin Aluminum Double Wall, 19mm Inner, Disc Specific

• HUB, REAR

  Forged Aluminum Alloy, Disc, 32H

• HUB, FRONT

  Forged Aluminum Alloy, Disc, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  Vee Tire Co, Road Chief, 700Cx30, Wire Bead

• DERAILLEUR, REAR

  Shimano Claris 8-Speed

• DERAILLEUR, FRONT

  Shimano Claris

• SHIFT LEVER

  Shimano Claris 2x8-Speed

• CRANKSET

  FSA Tempo Compact, 50/34T

• BOTTOM BRACKET

  Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC Z8

• CASSETTE

  SunRace 8-Speed, 11-32T

• BRAKE, FRONT

  Tektro MDC400, Road Mechanical, 160mm Rotor

• BRAKE, REAR

  Tektro MDC400, Road Mechanical, 160mm Rotor

• BRAKE LEVERS

  Shimano w/ Integrated Shifters

• HANDLEBAR

  Marin Butted Alloy, Compact 12º Flared Drop

• STEM

  Marin 3D Forged Alloy

• GRIPS

  Marin Comfort Tape

• HEADSET

  FSA No.8D, Sealed Cartridge Bearings

• SEATPOST

  Marin Alloy, 27.2mm

• SADDLE

  Marin Beyond Road Concept

• PEDALS

  Marin Oso OEM Nylon Platform
